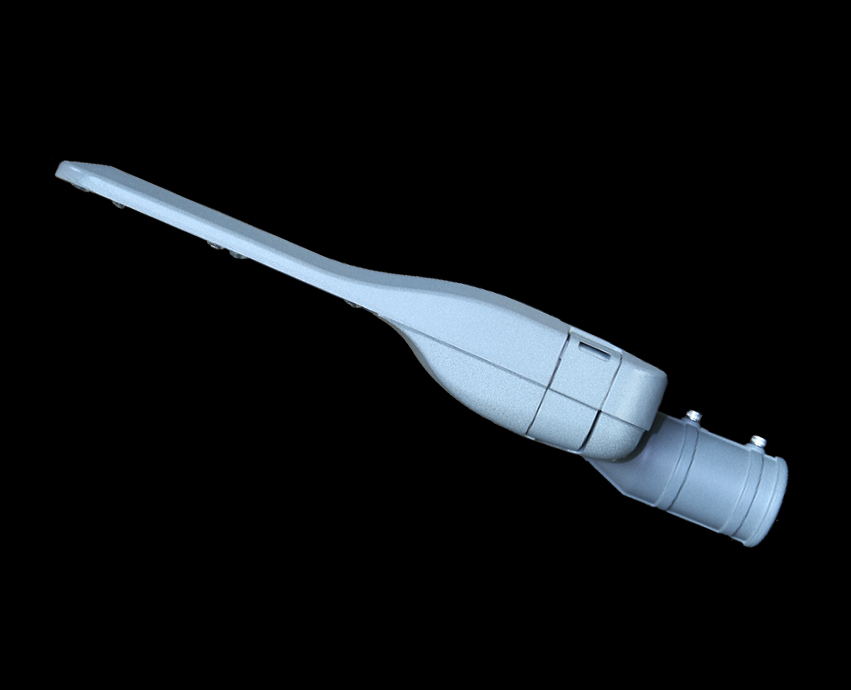

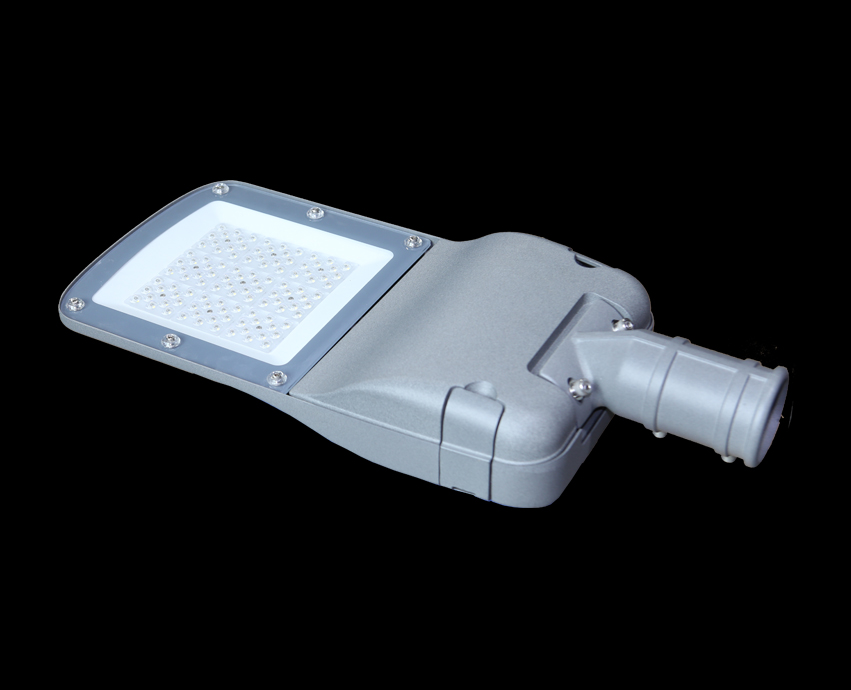

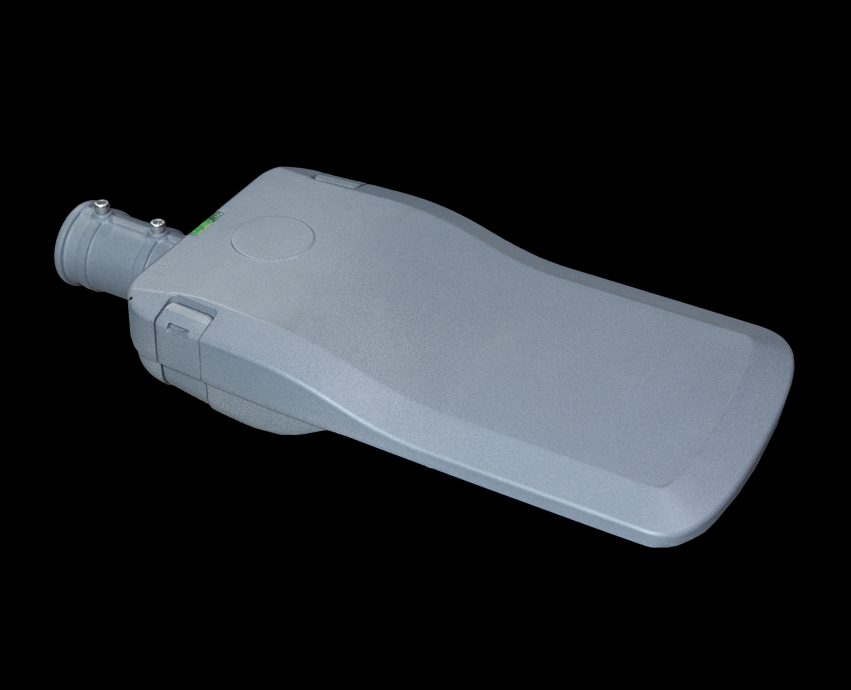

led street light
性能特点：
- ● Philips super brightness led chip with more than 210 lm/W luminous efficiency
- ● Light efficacy of luminaire: 160 lm/W

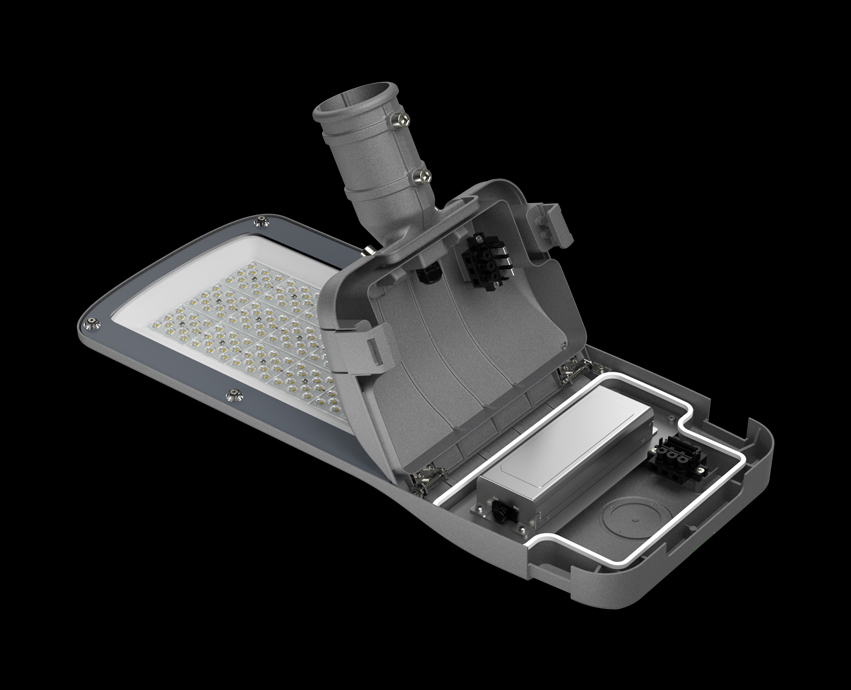

- ● Quick opening flip button for easy maintenance and replacement
- ● Streamline shape shell without dust accumulation
- ● Adjustable tilt to meet requirements for various installation angles
- ● Meet the requirement of dark sky without any light pollution
- ● Surge lightning protection：6KV
- ● Total harmonic distortion：≤10%
- ● NEMA light sensor optional
-
● Cover opening and power-off device optional
- ● IP protection：IP66
- ● Warranty: 5 years
适用场景：
- ● urban main roads, secondary roads, auxiliary street lamps
- ● factory street lamps
- ● parks, parking lots, residential areas
- ● business center roads
产品详情
技术参数/Specifications
|
Parameter items |
SZG508A-50W |
SZG508A-100W |
SZG508A-150W |
SZG508A-200W |
|
Input voltage（V） |
90-305Vac |
90-305Vac |
90-305Vac |
90-305Vac |
|
Power factor |
＞0.95 |
＞0.95 |
＞0.95 |
＞0.95 |
|
Brand of led chip（pcs） |
Philips |
Philips |
Philips |
Philips |
|
Luminous efficiency for 3030 led（lm/W） |
210 |
210 |
210 |
210 |
|
Total luminous flux for 3030 led（lm） |
10000±5% |
20000±5% |
30000±5% |
40000±5% |
|
Light efficiency for 3030 luminaire（lm/W） |
155-160 |
155-160 |
155-160 |
155-160 |
|
Correlated color temperature（K） |
3000-6500 |
3000-6500 |
3000-6500 |
3000-6500 |
|
Color rendering index（Ra） |
≥75 |
≥75 |
≥75 |
≥75 |
|
Beam angle（°） |
150°*80° |
150°*80° |
150°*80° |
150°*80° |
|
LED lifespan（h） |
100,000 |
100,000 |
100,000 |
100,000 |
|
Material of housing |
die-casting aluminum |
die-casting aluminum |
die-casting aluminum |
die-casting aluminum |
|
Brand of led driver |
Inventronics/Sosen |
Inventronics/Sosen |
Inventronics/Sosen |
Inventronics/Sosen |
|
Opening mode for power cavity |
quick flip opening |
quick flip opening |
quick flip opening |
quick flip opening |
|
Cover opening and power-off device |
optional |
optional |
optional |
optional |
|
Dark sky requirement |
meet |
meet |
meet |
meet |
|
Working temperature（℃） |
-40～+55℃ |
-40～+55℃ |
-40～+55℃ |
-40～+55℃ |
|
IP protection |
IP66 |
IP66 |
IP66 |
IP66 |
|
Dimensions（mm） |
535*210*108 |
605*265*108 |
710*265*108 |
760*280*108 |
|
Weight（Kg） |
3.8 |
5.0 |
6.0 |
7.0 |
|
Installation of pipe diameter（mm） |
Φ60 |
Φ60 |
Φ60 |
Φ60 |
|
Warranty |
5 years |
5 years |
5 years |
5 years |
IES文件
检测报告
